High Shear Mixer

Application:
The high shear mixer is suitable for emulsifying viscous products and material with a high solid content. The mixer can be used in the production of cosmetic creams, and various items in the medical and pharmaceutical industries.

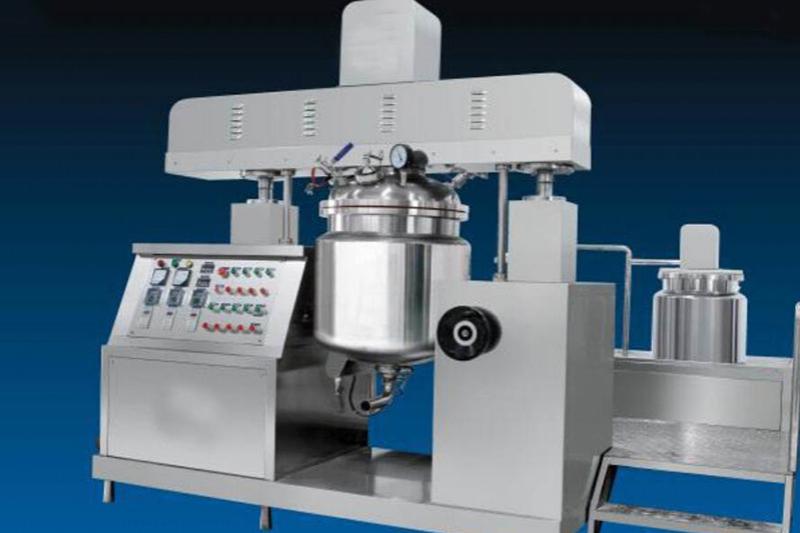

• Outer dimension: 2950mm x 2100mm x 2120mm x 2970mm (length x width x height x overall height)
• The emulsifying pot: volume: 100L, material: SUS316L, heating method: steam heating, cooling method: water cooling.
• Internal material: Inner container material: 316L, thickness: 5mm, internal polishing material: 300MESH (HSF). Jacket material: SUS304, thickness: 4mm, operating power: 0.3MPa. Insulated housing: 304, thickness: 2mm, external polishing material: 300MESH (HSF).
• Three stirrer devices in the emulsifying pot:
  High-shear dispersion homogenizer: working power: 4KW, rotational speed: 0-3300r/min (Frequency control of motor speed),
  Back-flow frame stirrer: working power: 1.5KW, rotational speed: 0-80r/min (Frequency control of motor speed),
  Reverse stirring system: scraper and stirrer are driven by the same motor, rotational speed: 0-80r/min.

• Capacity of water boiler: 200L
• Capacity of oil boiler: 100L

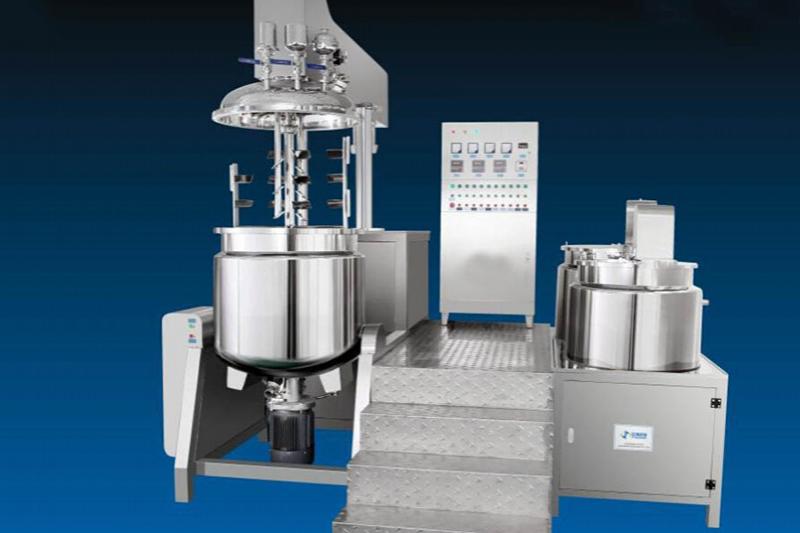

• Size:3200mm*2500mm*2250mm*3200mm (length*width*height* overall height)
• The emulsifying pot: volume: 300L, material: SUS316L, heating method: electric heating and steam heating, cooling method: water cooling.
• Internal material: Inner container material: 316L, thickness: 6mm, internal polishing material: 300MESH (HSF). Jacket material: SUS304, thickness: 4mm, operating power: 0.3MPa. Lagging casing material: 304, thickness: 2mm, external polishing material: 300MESH (HSF).
• Three stirrer devices in the emulsifying pot:
  High-shear dispersion homogenizer: working power: 5.5KW, rotational speed: 0-3200r/min (Frequency control of motor speed),
  Back-flow frame stirrer: working power: 2.2KW, rotational speed: 0-70r/min (Frequency control of motor speed),
  Reverse stirring system: scraper and stirrer are driven by the same motor, rotational speed: 0-70r/min.

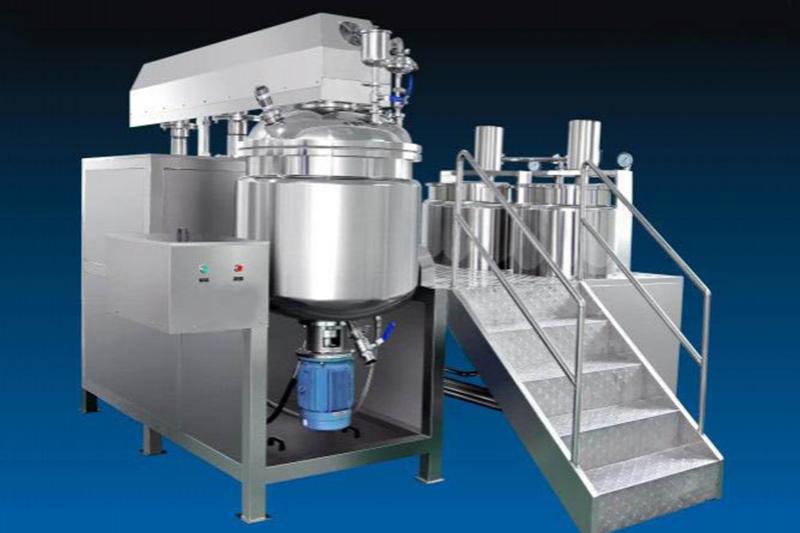

• Size: 2900mm x 1200mm x 2600mm (length of main engine x width x height), working height: 3800mm, dimension with the boiler: 3500mm x 3050mm x 2600mm (length x width x height)
• The emulsifying pot: volume: 100L, material: SUS316L, heating method: steam heating, cooling method: water cooling.
• Internal material: Inner container material: 316L, thickness: 5mm, internal polishing material: 300MESH (HSF). Jacket material: SUS304, thickness: 4mm, operating power: 0.3MPa. Insulation material for housing: 304, thickness: 2mm, external polishing material: 300MESH (HSF).
• Three stirrer devices in the emulsifying pot:
  High-shear dispersion homogenizer: working power: 4KW, rotational speed: 0-3300r/min (Frequency control of motor speed),
  Back-flow frame stirrer: working power: 1.5KW, rotational speed: 0-80r/min (Frequency control of motor speed),
  Reverse stirring system: scraper and stirrer are driven by the same motor, rotational speed: 0-80r/min.

• The high shear mixer is equipped with a tank, oil cylinder, solenoid valve, relief valve, retention pressure control valve and other components.
• The mixer's emulsification pot is designed with a vacuum system, which is equipped with a ZBV2060 vacuum pump with a 32m2/h suction and 0.75KW power.
• Our high shear mixer features high quality components. The ECS, LCD display monitor's touch panel and other electrical components are imported from Siemens, and the frequency converters come from Matsushita. All buttons are sourced from Schneider.
• The high shear mixer uses a silicone filler plate for bottle sealing.
• The mixer features round corners and smooth surfaces.
• You can use the touch panel and automatic control module for emulsifying, warming and cooling.
