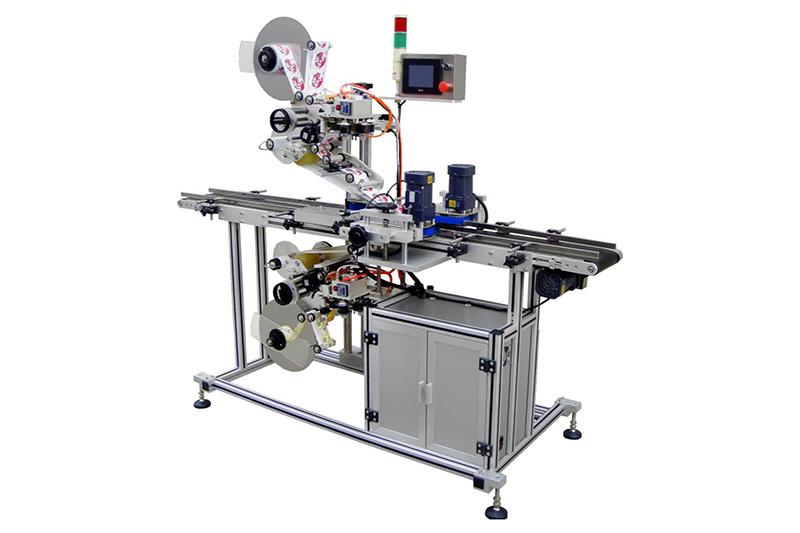

Top and Bottom Labeler Machine

Application:
The top and bottom labeler machine is used to automatically label packaging for short bottles in square, round, and flat shapes. This equipment is widely used for food labeling, medical and pharmaceutical labeling, cosmetic labeling and other labeling applications.

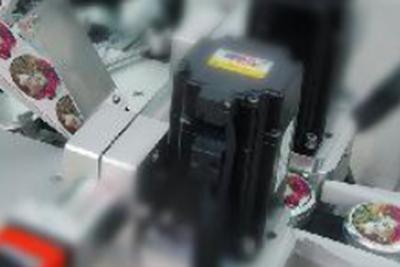

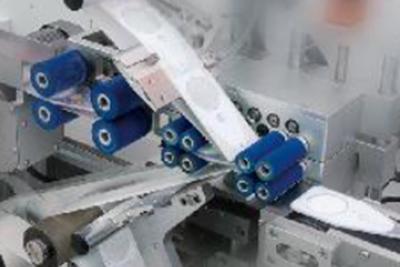

Details:

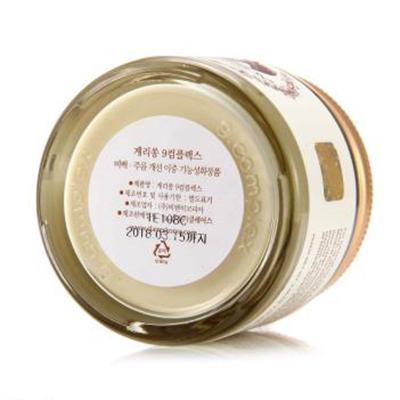

Final products:
Parameter:
Top and bottom labeling capacity 40-100/min(depending on product and size of label )
Top labeling capacity 60-200/min(depending on product and size of label)
Speed of conveyor belt 5~40m/min
Speed of interlayer 5~40m/min
Width of bottles on conveyor belt F20~100mm
Labeling speed 3~40m/min
Labeling errors (exclude package and label error) ±1mm
Max diameter of top labeling 95 mm
Max diameter of bottom labeling 40 mm
Min length of label 10mm
Power 2000W
Electrical requirements L/N/PE 220V 50Hz
Working temperature 0-50℃
Working relative humidity 15-90%
