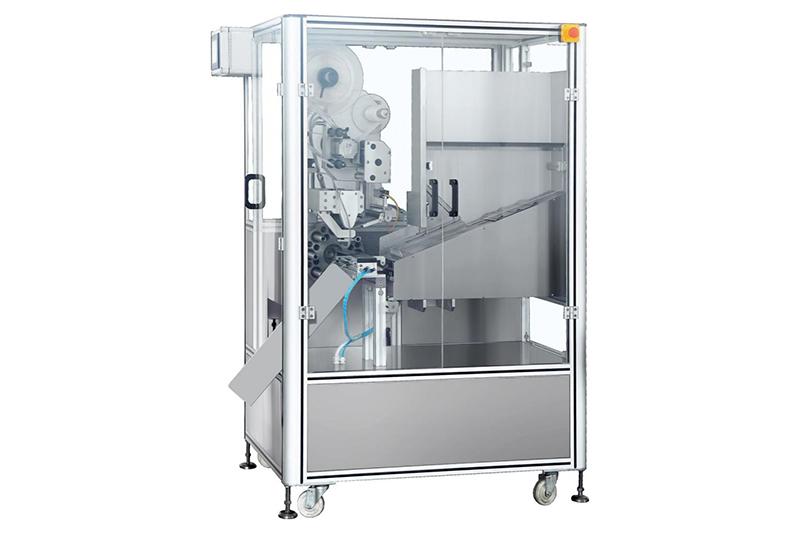

Soft Tube Labeling Machine

Application:
The soft tube labeling machine is equipped with a label roll for labeling the soft tubes (filled with pharmaceuticals, creams or food) at a high speed. It is widely used for food product, cosmetics, and medical and pharmaceutical industry labeling needs.

Parameter:
Labeling speed: 40-60/min
Labeling errors: ±0.5mm
Max diameter of label: 350mm
Max width of label: 200mm
Max diameter of the soft tubes: 65mm
Min diameter of the soft tubes: 19mm
Max length of the soft tubes: 220mm
Label roll diameter: 76.2mm
Electrical requirements: 220V 50Hz 3000W
Weight: 300kg
