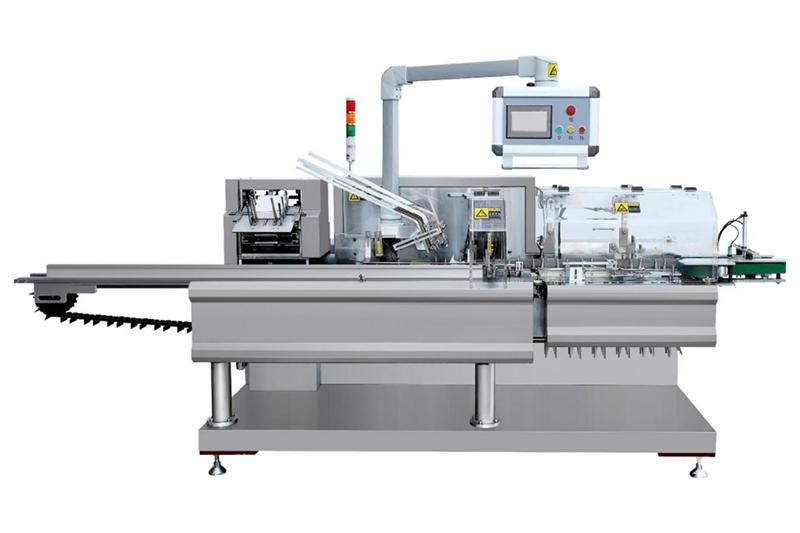

Automatic Horizontal Cartoning Machine
Application
Automatic horizontal cartoning machines are used to automatically carton a variety of solid products in a number of industries, including medical and pharmaceutical packaging, cosmetic packaging, food production, and more.
| Size of the carton | (length×width×height) (75~150) × (40~90) × (12~45) mm |
| Quality requirement | 250~350g/㎡ |
| Size of instruction book | (length×width) (100~250) × (125~160) |
| Quality requirement | 55 ~65 g/㎡ |
| Capacity | 100~120 (according with the weight of products) pcs/min |
| Power | 5KW |
| Power supply | 380V 50Hz |
| Compressed air pressure | ≥0.8 MPa |
| Air consumption | ≥0.1 m3/h |
| Vacuum pressure | -0.09 MPa |
| CFM of vacuum pump | 63m3/h |
| Overall dimension (length × width × height) | 4000×1500×1862mm |
| Weight | About 2500kg |

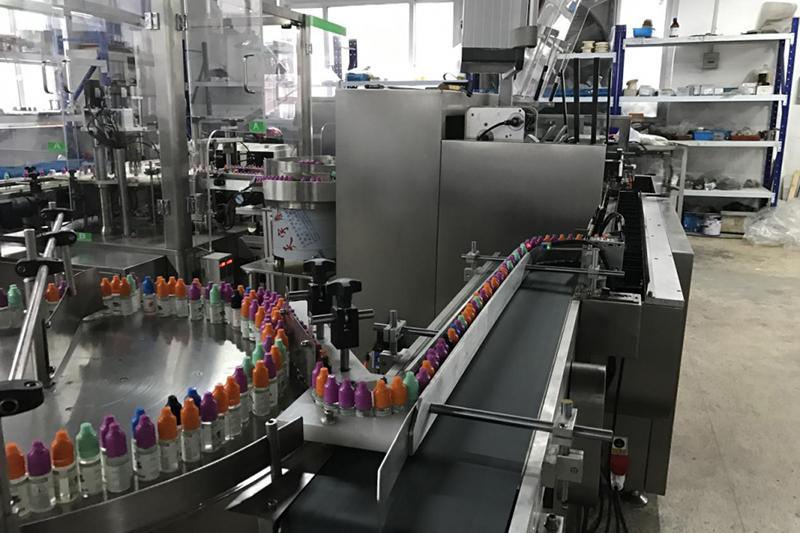

- The automatic horizontal cartoning machine is equipped with a servo motor, which features an outstanding operation and highly precise position accuracy. The motor can be matched to a conveyor belt, which is used to convey finished products with no need for any lubricant oil.

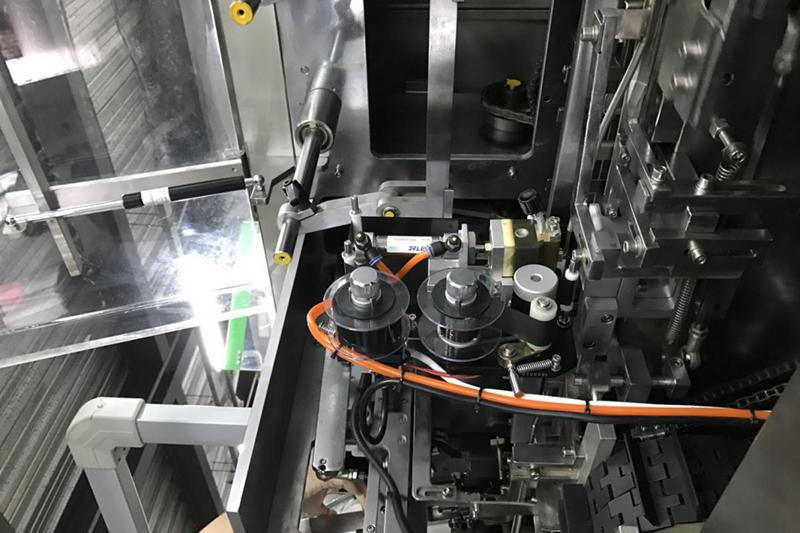

- The carton unfolding section of the machine uses a gear transmission and planetary gear, both of which feature a variety of functions. The motor continuously drives the belt and driving wheels, and is controlled using a software program. Our cartoning equipment is also suitable for carton adhesion via vacuum, random unfolding, and placing cartons in the right position.
