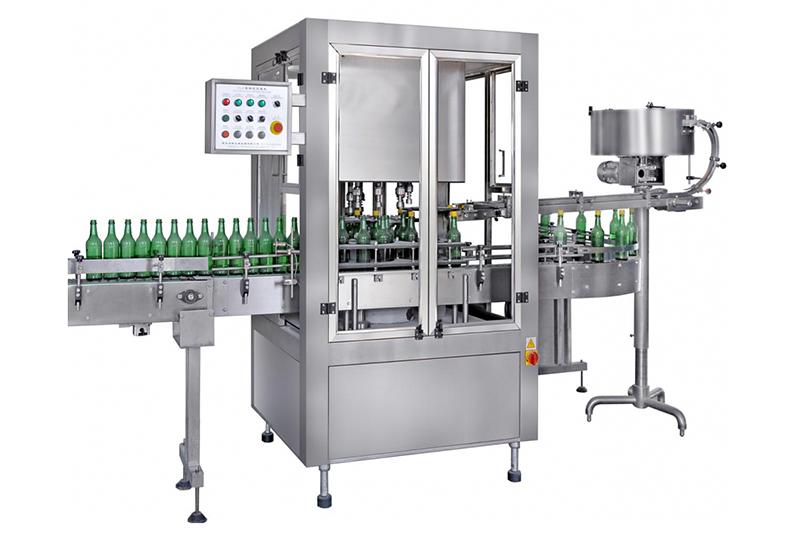

Fully Automatic Screw Capping Machine
Application:
Screw caps using the fully automatic screw capping machine are easy to open, and have a high sealing performance. The screw capping machine is suitable for a variety of working environments, and is an ideal piece of equipment used for packaging pesticides, medical and pharmaceutical products, chemical products, food, cosmetics and more.
| Outer dimension (Length x width x height) | 1700mm x 1400mm x 1700mm |
| Applicable cap material | Aluminum |
| Size of the bottle | Diameter: Φ20 mm－Φ50 mm Height: Φ80 mm－Φ150 mm |
| Diameter of the caps | Φ18 mm－Φ26 mm (need to change theindenter) |
| Main power | 1.5Kw |
| Voltage | 220V |
| Quantities of capping head | 8 |
| Capacity | 6000pcs/h |
| Weight | 800kg |

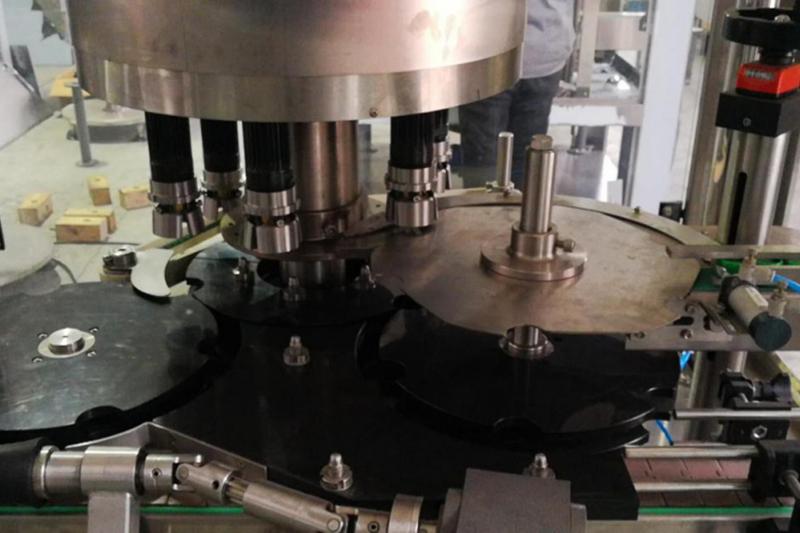

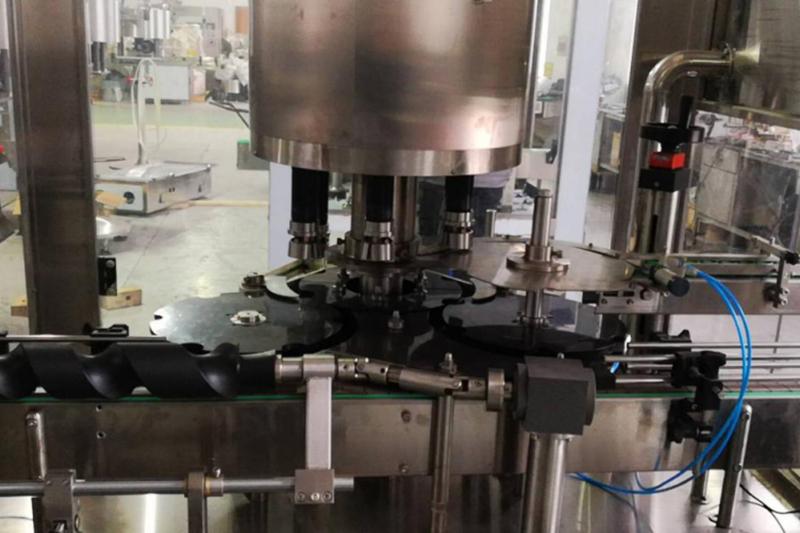

- The capping machine is suitable for capping containers in a variety of specifications. Eight manipulators work simultaneously to carry out a fast, error free capping performance.
- The cap feeding system and manipulators work synchronously.
- The fully automatic screw capping machine is equipped with a trimming system, which is driven through electromagnetic oscillation. The system trims quickly and correctly with no damage to the caps.
