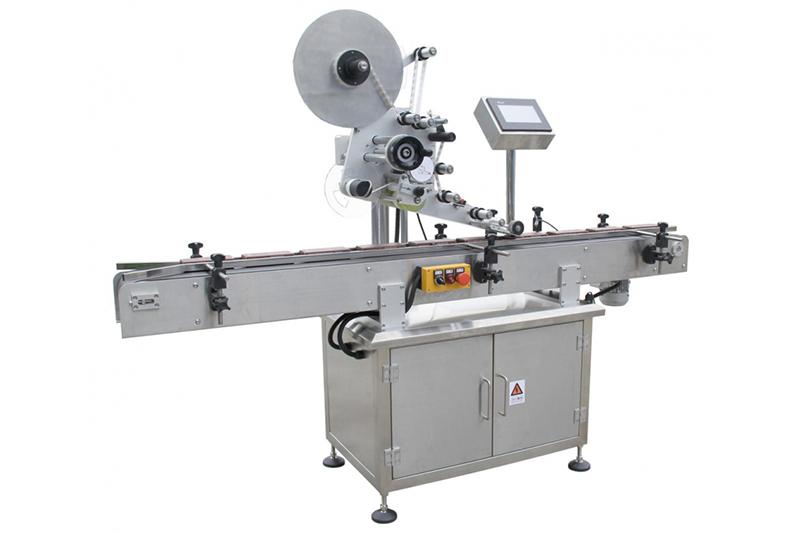

Flat Surface Label Applicator

Application
Flat surface label applicator is mainly applicable to labeling the carton and packages, and these cartons are used for medical & pharmaceutical packaging, food product, electronics industry and hardware industry. Our label applicator is particularly useful for labeling PIATS, anti-counterfeit label and logistics information on the folding cartons.

Parameter
Model ZHTBP02
Driving mode Step motor drived Right/left 20M/30M/50M
Operating direction
Max linear speed
Labeling speed 50-200
Width of the label 10-60mm
Labeling errors ±1mm
Max outer diameter of label roll Max.300mmφ
Inner diameter of label roll Stander:75mmφ(3″)
Overall dimension 2000×600×1400mm
Weight 150kg (standard)
Electrical requirements AC 110V or 220V (signal phase) ×0.6KW
Feeding device Manual/Automatic
Collecting device Colleting box/special collecting device
Features
  • This flat surface label applicator is suitable for labeling adhesive stickers, and can be paired with beverage filling equipment and packaging equipment in order to form a flat container packaging line.
  • Our machine features an automatic fault alarm function for when there is no label, or the belt does not perform as expected.
  • The label applicator is available in a variety of models, including S, M, L, XL and high speed types. The labeling speed is about 100~500pcs/min.
  • A number of auxiliary devices can be connected to the applicator, including a thermal printer, bar code printer, feeding rotary wheel and conveyor belt.
