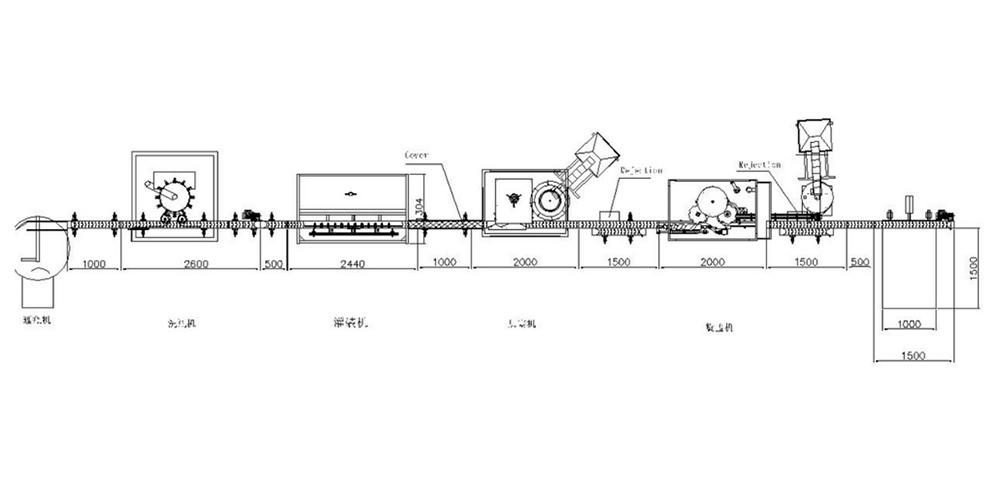

The liquid packaging line is designed to package liquid products into their containers. It is important to ensure high precision and accuracy in order to prevent the liquid products from spilling, leading to waste.

Parameter

• Filling range 100~1000ml
• Filling speed ≤80 bottle/min(within the range of 100~1000ml)
• Filling accuracy ±1％
• Power 2.0KW
• Voltage 380V ±5％
• Air pressure 6.5~8.5kg/c㎡
• Air consumption 0.9 m³/min
• Inlet height 2300 mm

Features

• The filling machine is made of stainless steel, so it is able to handle even corrosive liquids and some foods with high hygiene requirements.
• The filling machine can change containers with different capacity in a short amount of time.
• The machine controls its filling quantity by setting a different filling volume or filling time. We can adjust the filling quantity at one time or separately to ensure filling accuracy.

Component

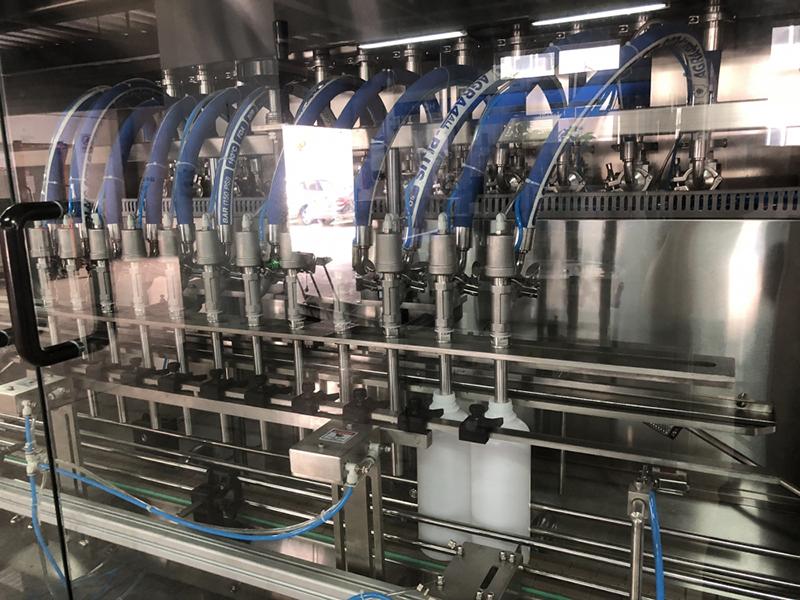

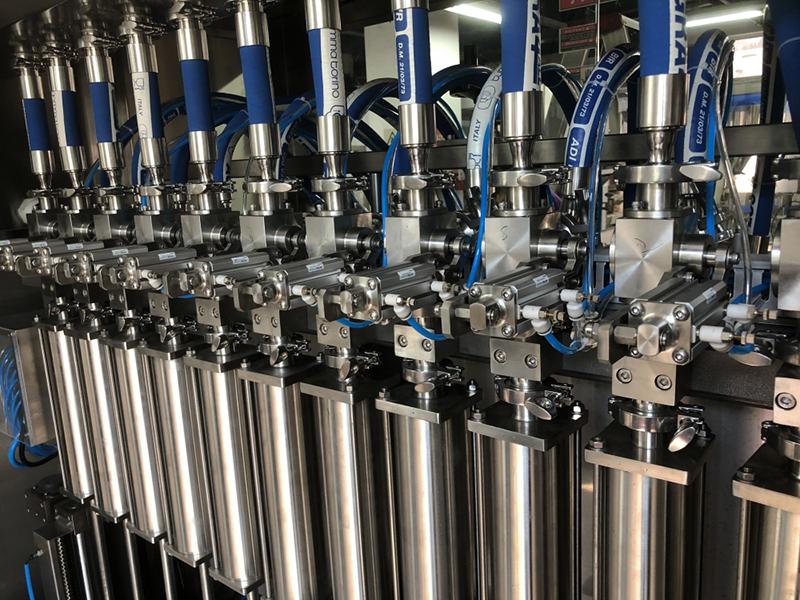

Filling machine
When the filling process starts and bottles go through the photoelectric reflection part, the PLC receives a signal. Then the machine will arrange 12 bottles and fill them automatically as soon as these bottles are ready, which ensures security and reliability. During filling process, when the filling volume reaches the preset volume, PLC sends an order to stop the machine immediately and filled bottles will be dropped. Then, another 12 bottles will repeat the process above. When there is not enough liquid in the storage hopper, the PLC receives a signal sent by level controller, and then the machine will load more liquid into storage to keep the liquid level within a certain range to ensure filling accuracy.
