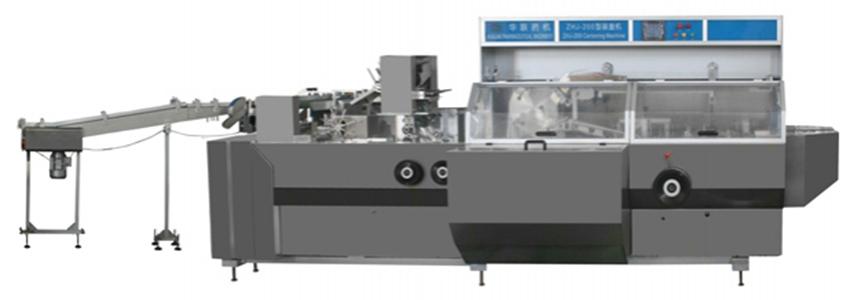

High Speed Cartoner Machine

Application
The high speed cartoner machine is suitable for continuous cartoning of pill tablets, soft tubes and bottles. It features a high packaging efficiency, with a maximum packing speed of 200 pieces/minute. The cartoning equipment is widely used for medical and pharmaceutical packaging, cosmetics packaging, and light industrial packaging.

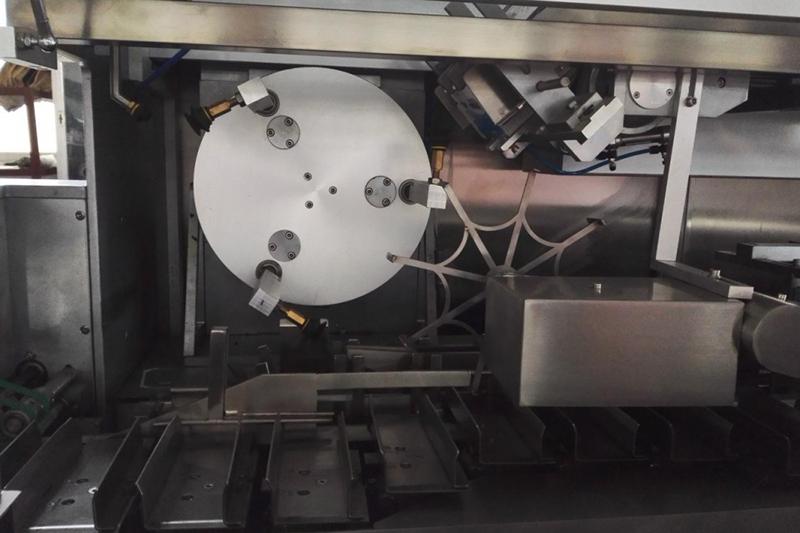

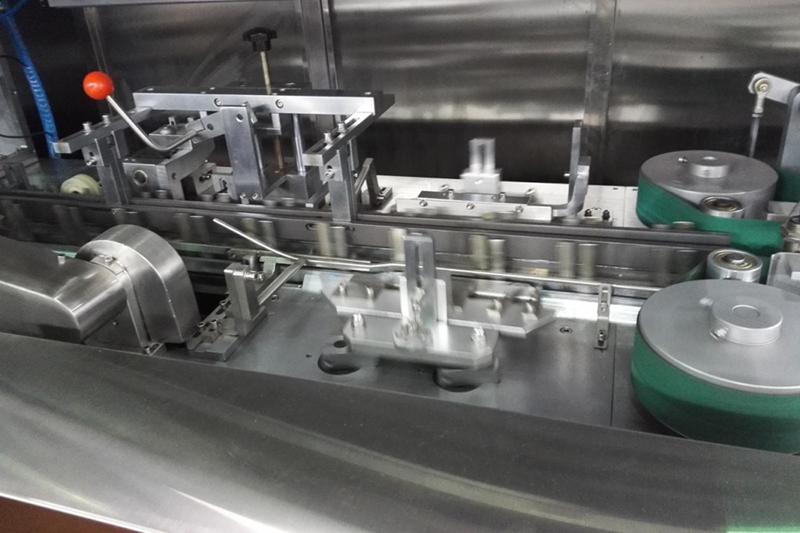

Details
Finished products
Parameter
Model ZHJ-200 ZHJ-260
Capacity(pcs/min) ≤200 ≤240
Max size of the carton(mm) 200×80×70 200×80×70
Min size of the carton(mm) 65×25×15 65×25×15
Quality requirement
250-300/m2 250-300/m2
Max size of manual (length×width) 260×180 260×180
Min size of manual (length×width) 110×100 110×100
Quality requirement 55-65/m2 55-65/m2
Air consumption ≥5m3/h ≥5m3/h
Total power 4.1kw 6.9kw
Electrical requirements 380V 50HZ 380V 50HZ
Overall dimension 4500×1500×1700 4500×1500×1700
Weight(kg) 3500 3500
