Application:

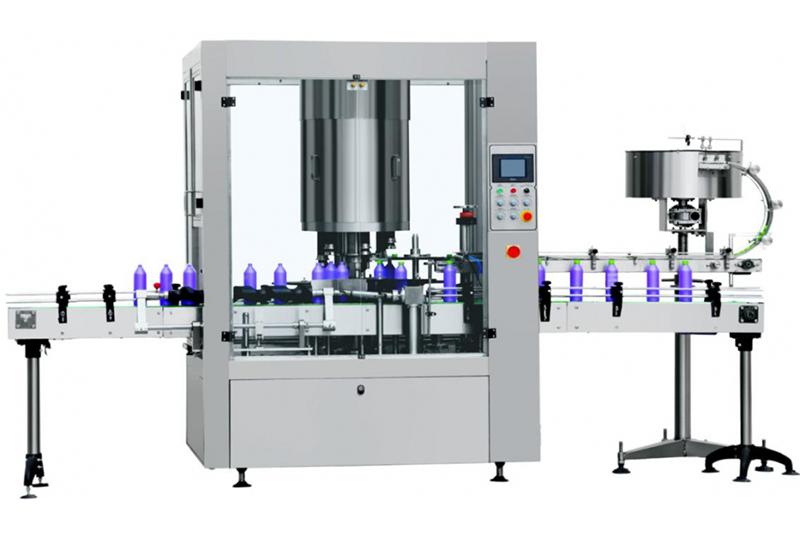

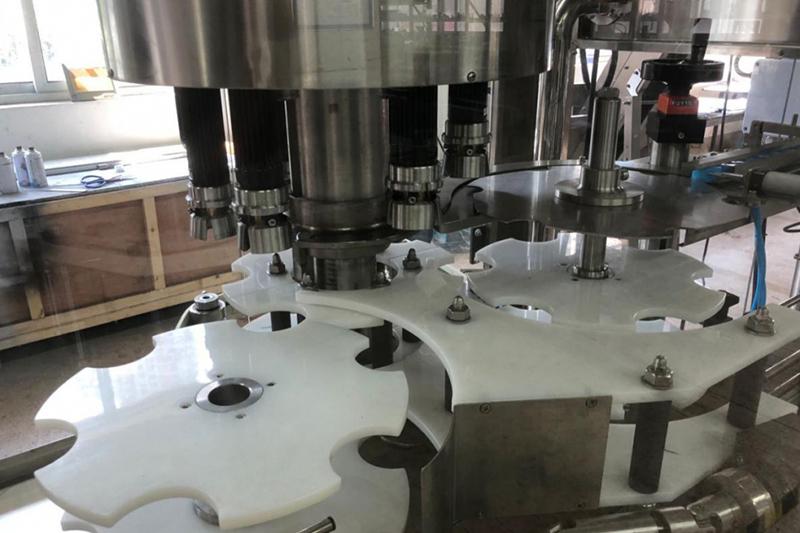

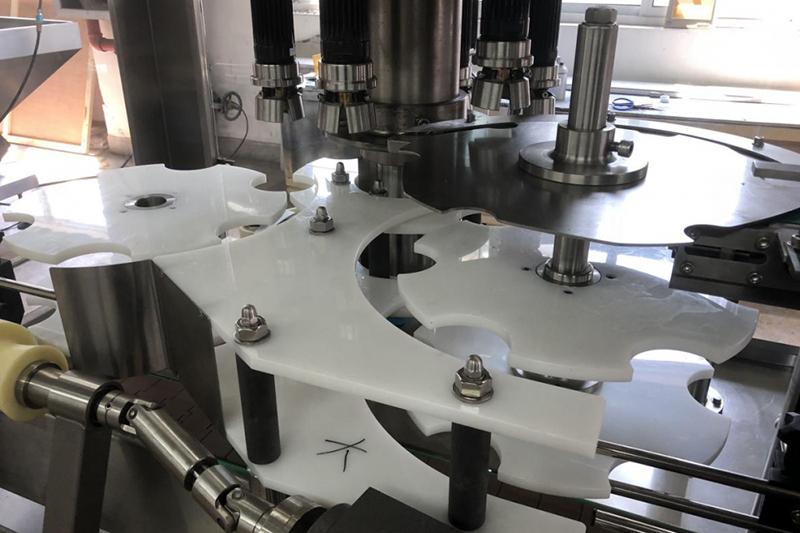

The ZHX200 inline capping machine uses a screw capping system where the operator can adjust the capping speeds for a different yield. It features efficient operation, and can be paired with high speed capping machines to form a bottle packaging line. The inline capping machine is widely used for medical and pharmaceutical packaging, cosmetic packaging, food packaging and more.
| Capacity | ≤6000pcs/h |
| Cap size | Φ35-55mm |
| Diameter of bottles | Φ45-100mm |
| Height of bottles | 80-280mm |
| Working air pressure | 6~8㎏/㎝² |
| Electrical requirements | AC380V, 50/60Hz |
| Power | 3kw |
| Weight | 1000Kg |
| Outer dimension | 2000mm×1300mm×2400mm |
