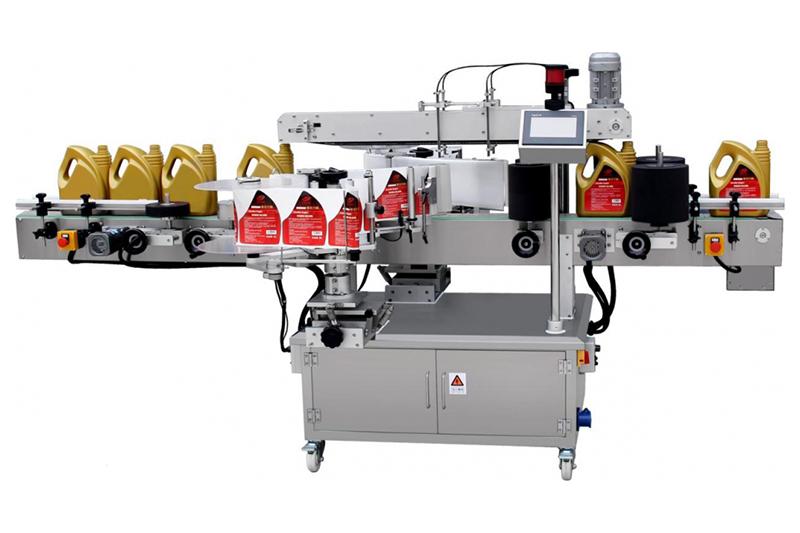

Front and Back Labeling Machine

Application:
The front and back labeling machine is suitable for front and back label application on flat bottles, square bottles and oval bottles. These bottles are widely used in food, cosmetic, medical and pharmaceutical, and pesticide industries. Bottle volumes range between 0 to 5 L, and the top machine labeling speed is 0-26m/minute.

Parameter:
1.Electrical requirements:220V;50Hz
2.Power: 2.5Kw
3.Labeling speed: 0~26m/min
4.Proper internal diameter of label roll: Φ75mm
5.Max external diameter of label roll: Φ350mm
6.Standard height of label: 0~130mm
7.Max height of label: 190mm
8.Labeling errors: ±1mm
9.Weight: about 650Kg
10.Outer dimension: 2400mm×1800mm×1400mm
