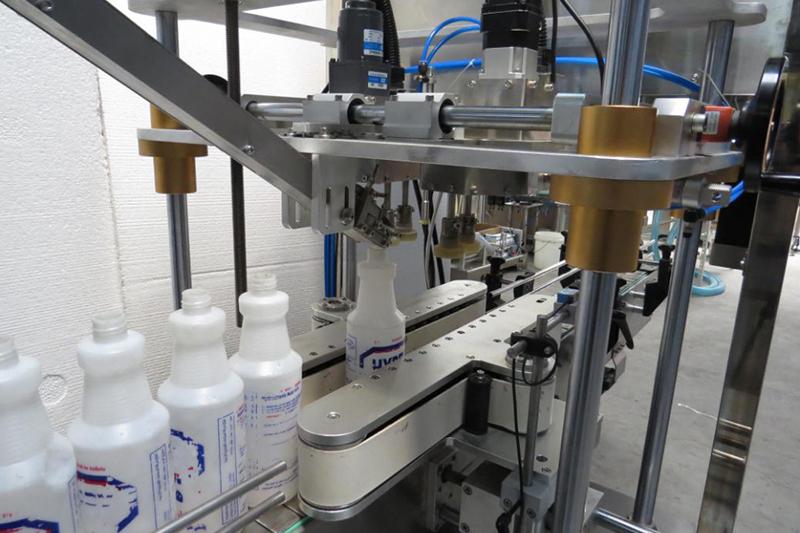

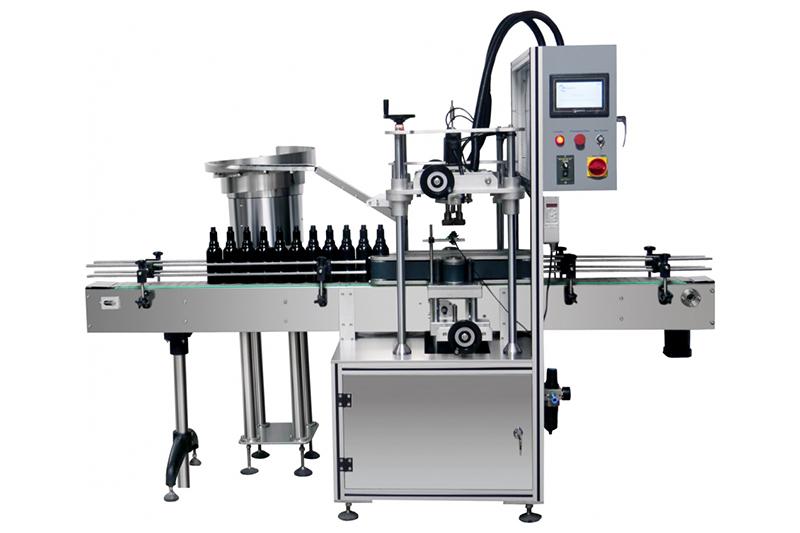

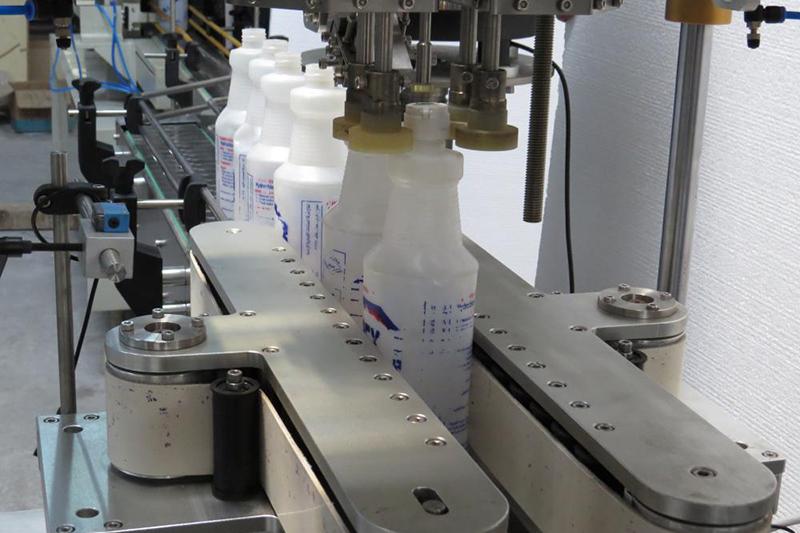

Automatic Spindle Capper

Application:
The automatic spindle capper uses a screw capping system. Operators can adjust the capping speed for different yields, and the capping machine itself is widely used to cap round and square bottles, including trigger spray caps, pump caps, push-pull caps, snap hinge caps and sport push-pull caps.

Parameter:
Capacity: 50 bottles/min
Cap size: 15-70㎜
Diameter of bottles: 20-100㎜
Height of bottles: 30-120㎜
Air pressure: 0.3-0.5Mpa
Electrical requirements: 380V 50Hz 1.3Kw
Outer dimension: 255×110×220㎝
Weight: 600Kg

• Automatic cap feeding and wheel fixing is controlled using a servo motor, which increases the cap feeding precision and improves capping speed. Velocity and travel parameters of servo motor can both be set by the operator, and these parameters can be saved for future use.
• The capping machine torque is adjustable, ensuring there is no cap damage.
• The spindle capper is designed with a new trimming function based on an older model. This equipment has a high capping efficiency with no risk of damage or scratches to the caps. It also features a long service life.
