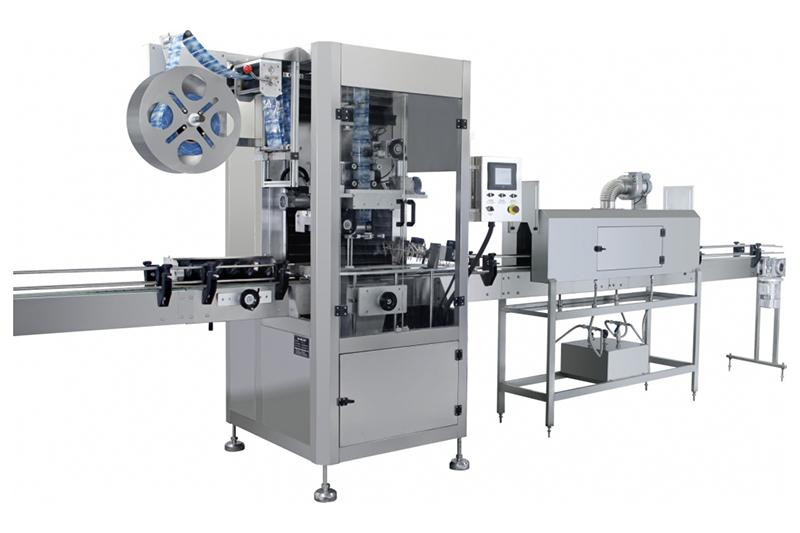

Shrink Sleeve Labeling Machine

Application
The shrink sleeve labeling machine is suitable for labeling a variety of bottles, including 5 gallon buckets, cooking oil buckets, and sauce filled glass bottles. This machine is widely used for food packaging, beverage packaging, and other product packaging applications.

Details
Parameter

Shrink Sleeve Labeling Machine
Labeling speed: 100 pcs/min
Electrical requirements: AC220V 50/60Hz
Power: 3KW
Overall dimension: 2400(L) ×9500(W) ×2500(H)
Diameter of containers: Φ 30-85
Range of labels: 40-240(L) 0.035-0.082(T)

Steam shrinker
Electrical requirements: AC220V 50/60Hz
Power: 0.75KW
Dimension: 2000(L)×400(W)×2100(H)
Steam requirement: 35kg/hr
Steam supply pressure: 5kg/cm2

Features
  • If one of the belts equipped on synchronous motor has been damaged, it can be changed in as little as 3 minutes, ensuring the shrink sleeve labeling machine is easy to maintain.
  • The labeling machine is suitable for wide range of bottle diameters, ranging between 30 to 85mm.
  • Our labeler is designed with a special thermal insulation layer that ensures the shrinking equipment's surface temperature remains at room temperature to ensure operator safety.
  • The labeling machine is designed with a synchronous transmission mechanism, cutter holder and cutter, allowing users to automatically complete packaging.
