Oil Filling Packaging Line



Application:

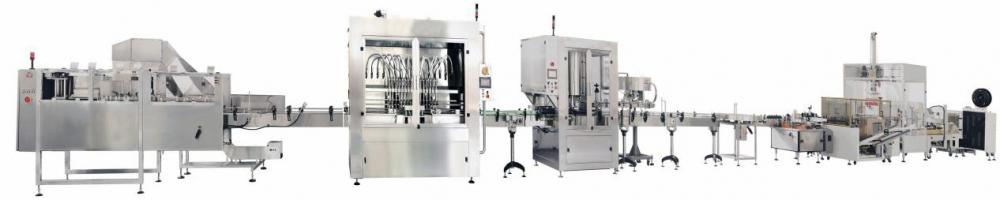

The oil filling packaging line consists of an automatic bottle unscrambler machine, servo-driven volumetric filling machine, capping machine and automatic detection and reject system. In addition, the packaging line is capable of filling small sized bottles with a capacity of less than 5,000mL.

Parameter:
Filling rang: 500-5000ml(via changing screw rods)
Filling nozzle number: 12 Sets
Filling speed: 30-80 B/min
Filling accuracy: 1%
Filling volume: 100L
Air pressure: 5-6Kg/cm 0.2m3/min
Power supply: 3P 080V/220V 50-60Hz 2500W

Features:
  • The oil filling packaging line is highly intelligent, and requires only 3 people to operate.
  • Bottle unscrambler machine features quick and easy operation, and is suitable for round and square bottles. Without mold, it is fast and easy to adjust the specifications.
  • The filling machine use a servo system to fill to improve the filling accuracy.
  • The filling packaging line uses linear capping, and features simple structure and easy adjustment.
