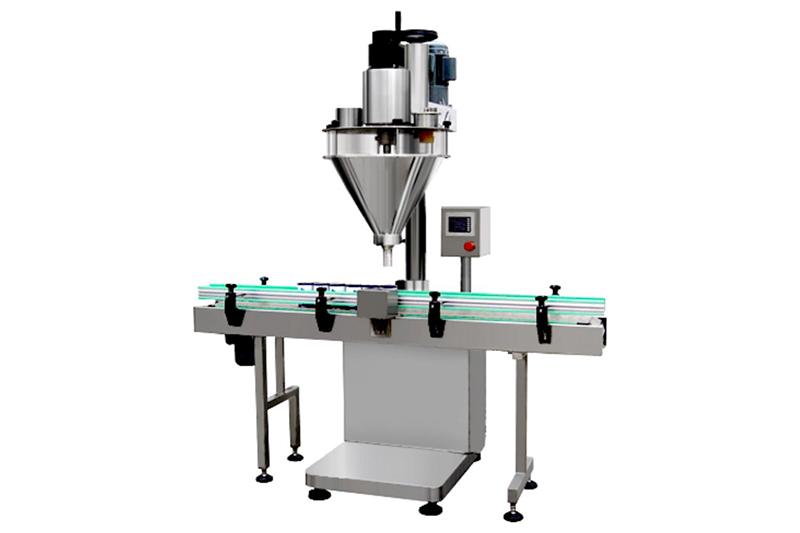

Automatic Weigh Filling Machine

Application:

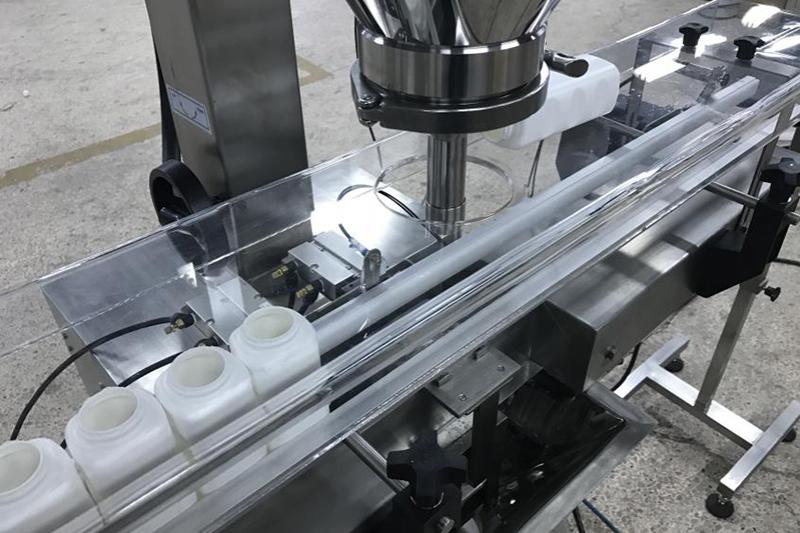

The automatic weigh filling machine can be used for filling powder and granules automatically. It has automatic bottle positioning, filling and weighing functions. Our machine is suitable for filling and packaging powder, granules, glucose, seasoning, solid beverages and so on.

Parameter:
Quantifying method: auger filling system
Dose size: 10 - 5000g
Filling accurancy: ≤100g,±2%; 100 - 500g,±1%; ≥500g,±0.5%
Filling speed: 15 - 60 pcs/min
Power supply: three-phase 380V 50-60Hz
Power: 1.6KW
Weight: 320kg
Dimension: 2000×970×2030mm
Volume of hopper: 45L (Oversize: 65L)

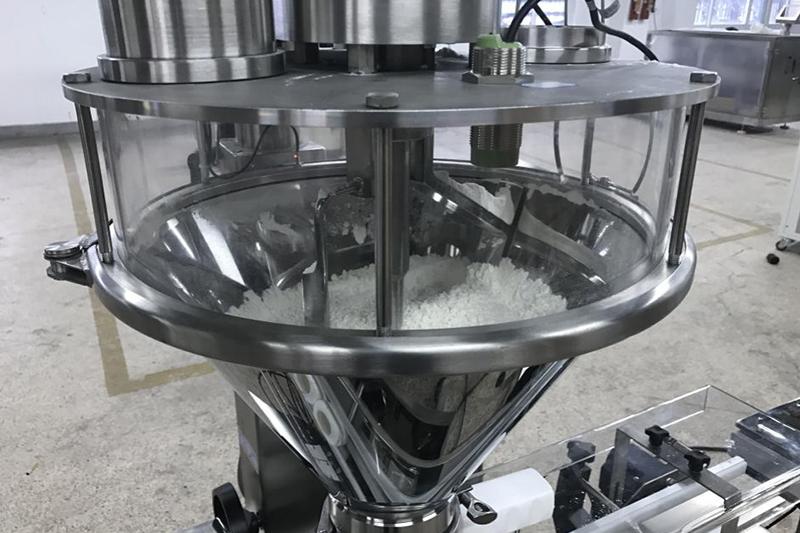

• Each weigh filling machine produced by our company is based on a stainless steel frame, and comes equipped with a combined transparent hopper. The simple filler design allows for easy cleanup without tools.
• The parameter of the working can be saved for next using, it can save 10 different working parameters.
• You can change the different auger for filling various products from superfine powder to small granules.
  The filling machine is equipped with a handy hand wheel for adjusting the height of machine conveniently.
• Our filler can be matched with a bottle unscrambler, capping machine, and labeling machine to form filling and sealing lines.
