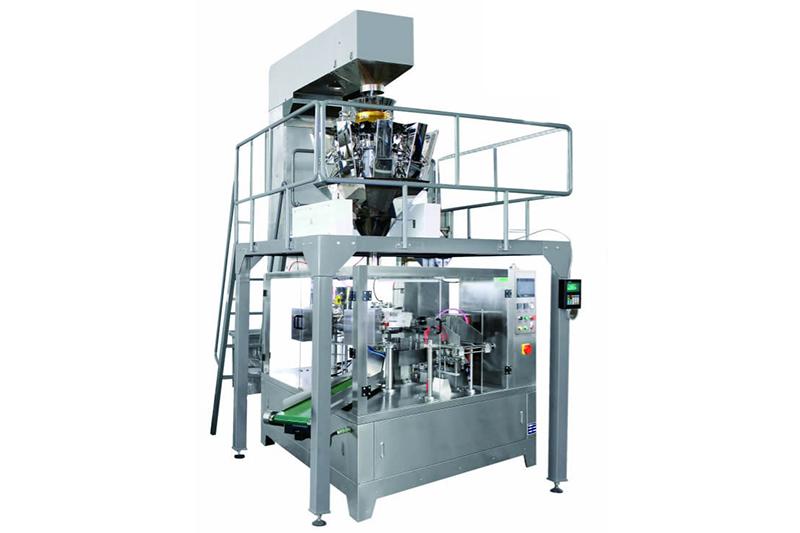

Premade Bag Filling Machine

Application:
  • Liquid packaging: detergent, Chinese rice wine, sauce, liquid soap and so on.
  • Irregular products packaging: dried fruits, chocolates, candies, flaky pastries, nuts, peanuts, melon seeds, chips and so on.
  • Powder packaging: chicken seasoning, MSG, salts, coffee, milk powder, electuaries, seasoning powder and so on.
Parameter:
Type of the bags Vertical bag, handy bag, zipper bag, four sides sealed bag, three sides sealed bag, paper bag
Size of the bags W:80~200mm
Packaging weight 10-1500g
Packaging speed 45-60pcs/min (undefineddepends on the products and filling weight)
Packaging accurancy average accurancy ≤±1%
Total power 2.5Kw
Application Irregular products: chicken seasoning, MSG, melon seeds, jujubes, hot poy seasoning, tea, seeds, areca nut, candies, oatmenl, succade, chocolates, cookies, peanuts, cakes, puffed food and so on
Weighing device Electronic weighing system, material conveyor, working platform
Packaging process Six stations: 1. Feeding bags, 2. Printing the production date, 3. Opening the bags, 4. Feeding the material into bags, 5. Heat-sealing, 6. Trimming and conveying the finished products.
Eight stations: 1. Feeding bags, 2. Printing the production date, 3. Opening the bags, 4. Feeding the material into bags, 5. Repeat step 4, 6.Stirring or shaking the material, 7. Heat-sealing, 8. Trimming and conveying the finished products.
Features:
  • The packaging line is formed with a premade bag filling machine, working platform, electronic scale and Z-type hoister.
  • The filling machine is designed with a waterproofing system, making it easier to clean.
  • Premade bag filling machine is equipped with a colorful touch screen for simple and clear operation.
  • Using the premade bags, the machine has high sealing quality.
