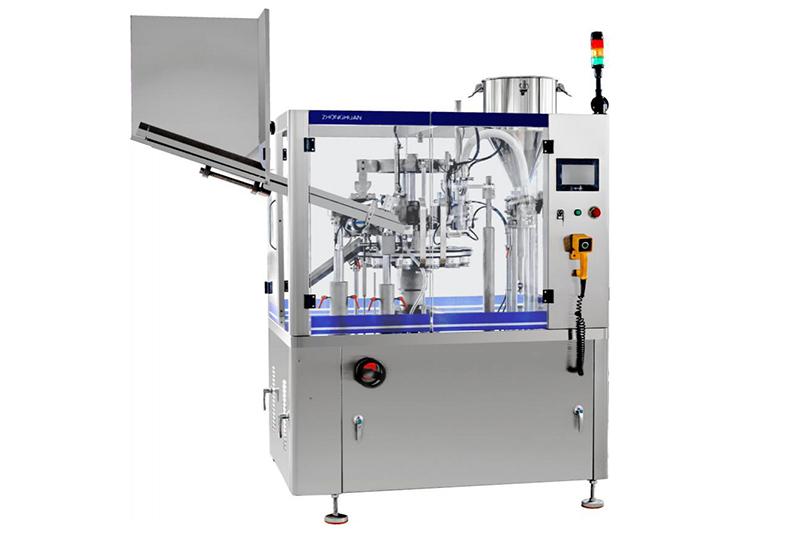

Soft Tube Filler and Sealer

Application:
The soft tube filler and sealer is suitable for filling ointments, creams, gels and viscous products into plastic tubes, plastic laminated tube, aluminum-plastic laminated tube, etc., and sealing of filled soft tubes by heating the tube's end. The sealed tube end can be available with straight or irregular shape. At the same time, this tube filler and sealer machine is not only applicable to printing lot code on the sealed end, but also trimming the sealed end to make finished products. The tube filling machine can be used for cosmetics packaging, light industry, medical and pharmaceutical packaging and food products.

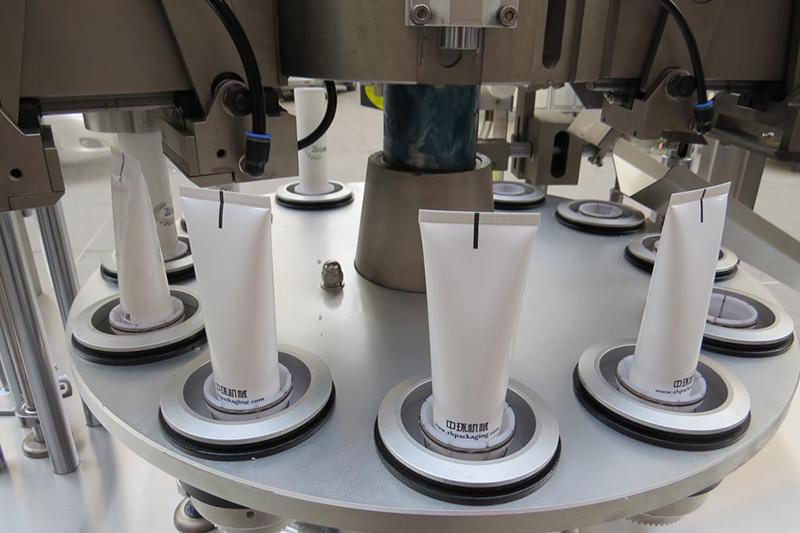

Details:

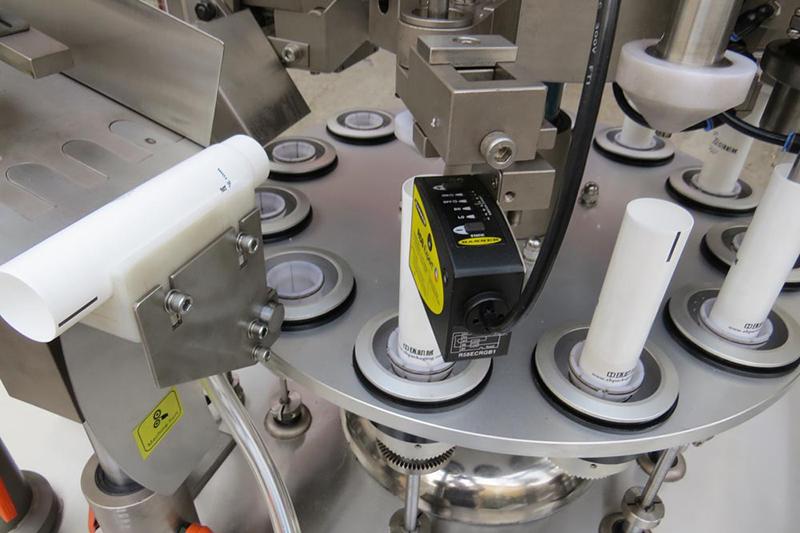

  • Automatic colored mark detecting and filling
  • Automatic cutting
Final products:

Parameter:
Capacity: 60-80 pcs/min
Filling volume: 2-250ml
Tube diameter: 10-5mm
Tube length : 50-220mm
Filling accuracy: ≤±0.5%
Tube end sealing: internal heating
Motor power: 1.5KW
Sealing power: 3KW
Air pressure: 0.60MPa
Dimension: 2270*960*2100 (mm)
Weight: 1250kg
