Application:

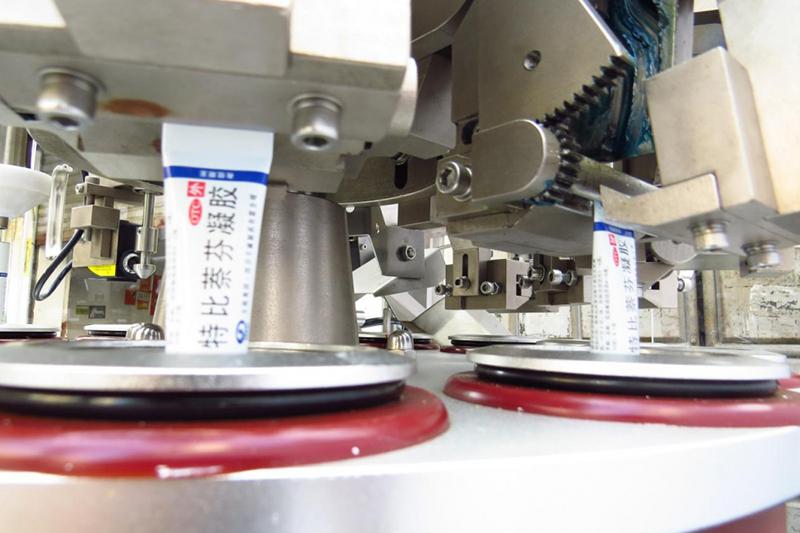

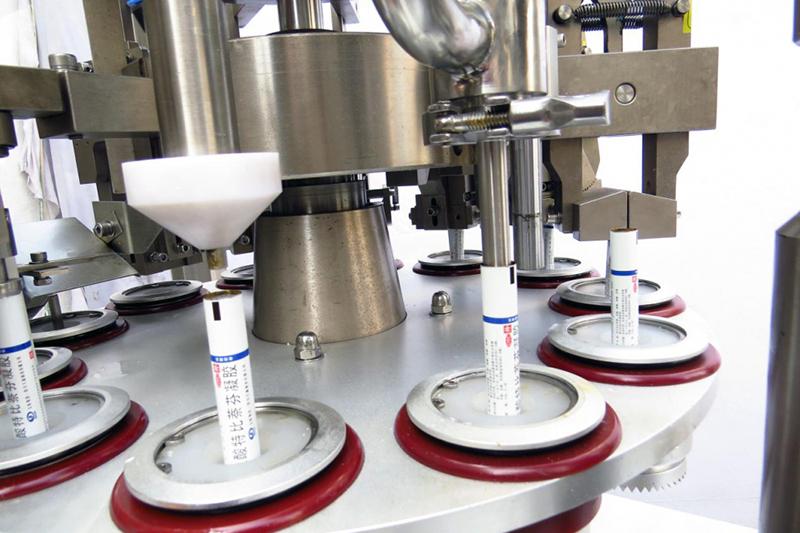

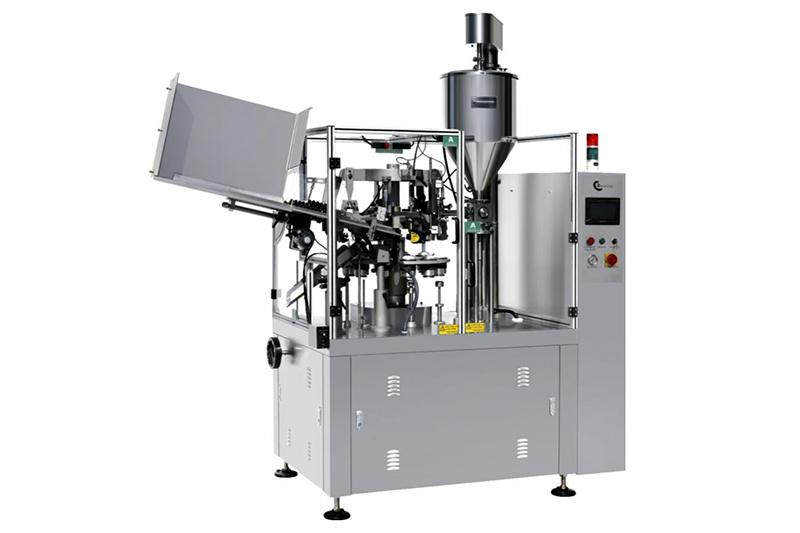

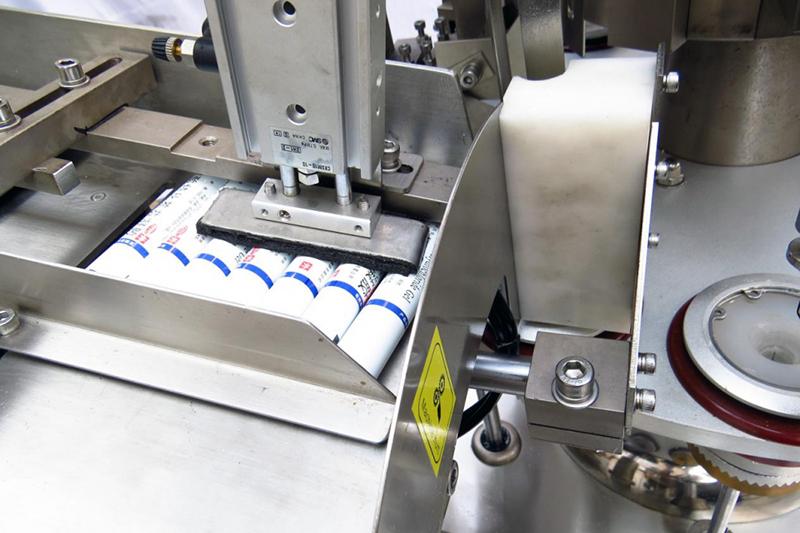

The aluminum tube filling machine is suitable for filling ointments, creams, gels and viscous products into soft tubes, and sealing of filled soft tubes by heating the tube's end. At the same time, this tube filler and sealer is also used for crimping and sealing tube's end, and printing lot code and the production date on the tubes to make finished products. This tube filling machine can be used for cosmetics packaging, light industry, medical and pharmaceutical packaging and food products.
Parameter:
Capacity: 60-80 pcs/min
Filling volume: 2-200ml
Tube diameter: 10-35㎜
Tube length: 50-200㎜
Filling accurancy: ≤±0.5%
Motor power: 1.5KW
Air pressure: 0.6PMa
Dimension: 2270mm×960mm×2100mm
Weight: 1200kg
Parameter two:
Capacity: 30-60 pcs/min
Filling volume: 5-120ml
Filling accurancy: ≤±0.5%
Motor power: 1.1kw Sealing power: 3kw
Air pressure: 0.60MPa
Displacement: No less than 600L/min
Dimension: 1950*750*1850mm
Weight: 750kg
