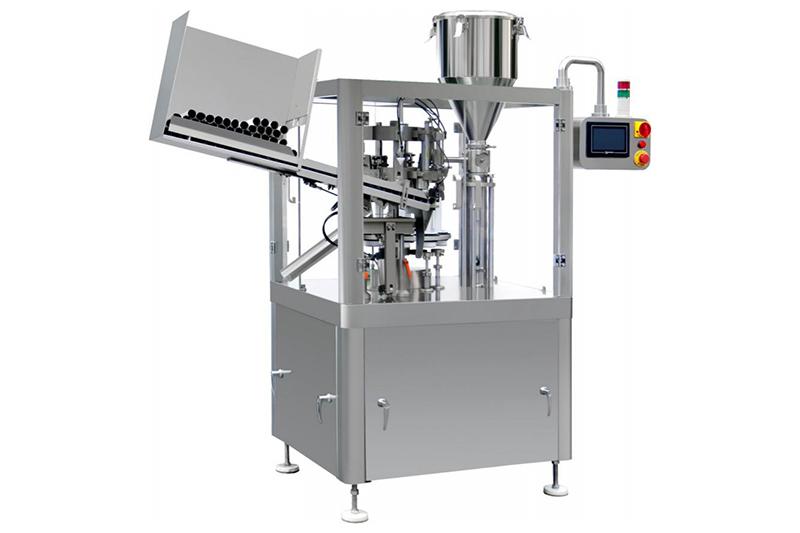

Soft Metal Tube Filler Machine with Sealer

Application:
The soft metal tube filler machine with sealer is suitable for filling pasty products, creams and viscous products into aluminum tubes smoothly and correctly. At the same time, this tube filler and sealer is also used for crimping and sealing the tube's end, and printing lot code and the production date on the tubes. This tube filling machine can be used for medical and pharmaceutical packaging, food products, cosmetics packaging, light industry and so on.

Details:

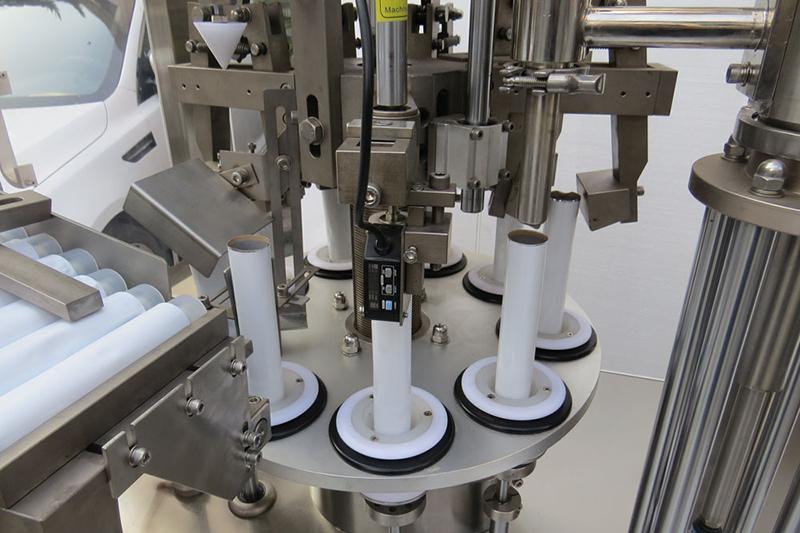

  • Automatic colored mark detecting

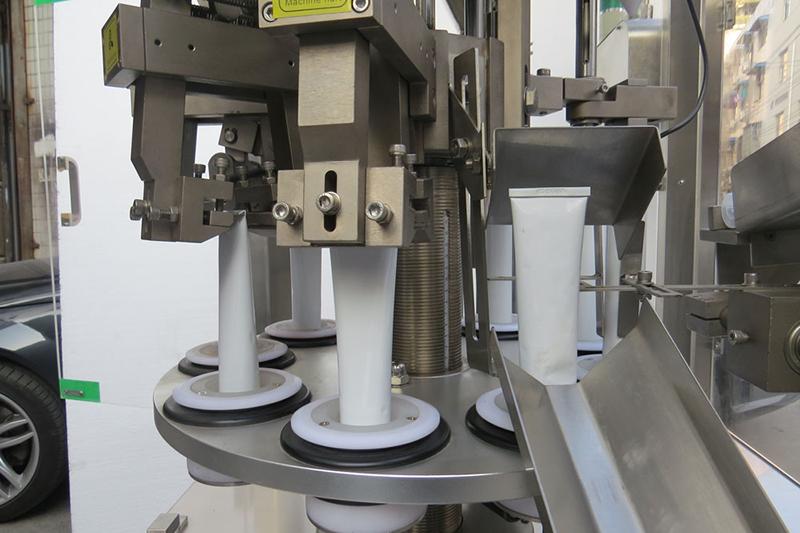

  • Automatic crimping and sealing

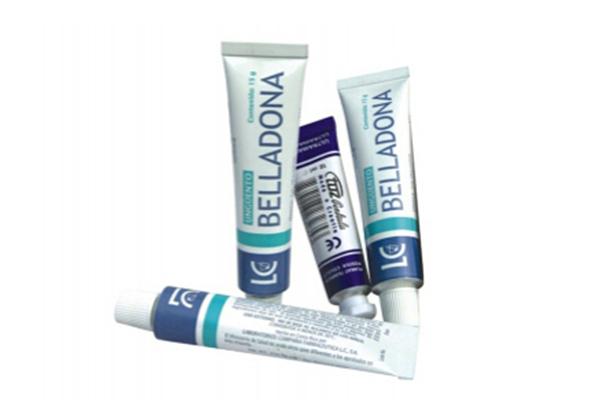

Final products:

Parameter:
Capacity: 30-60 pcs/min (Variable-frequency control of motor speed)
Filling accuracy: ≤±0.5%;
Motor power: 1.1kw
Air pressure: 0.40-0.50MPa
Displacement: <600L/min
Dimension: 1950*750*1850 (mm)
Weight: 700kg
