Application:

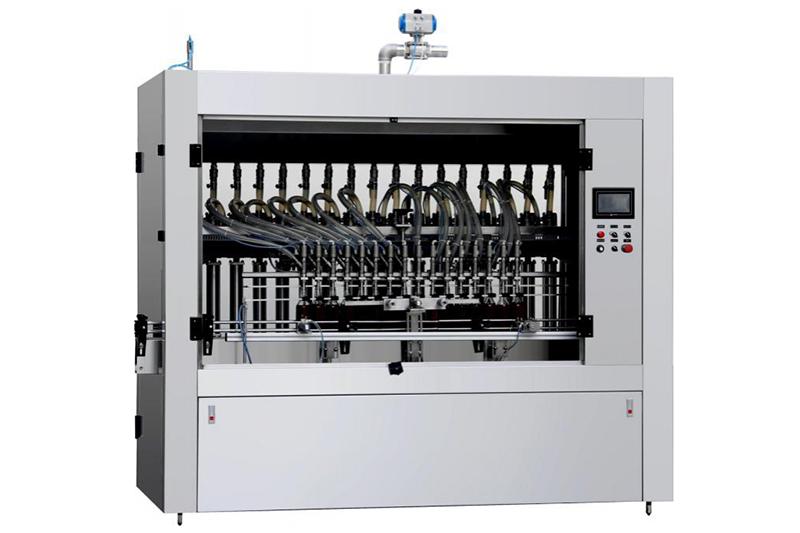

The servo pump filling machine is used to fill different bottles with a capacity range of 500 to 5,000mL. In addition, this filling machine is widely used for liquid filling in a variety of industries, including food, pesticide, and chemical industries.
Details:

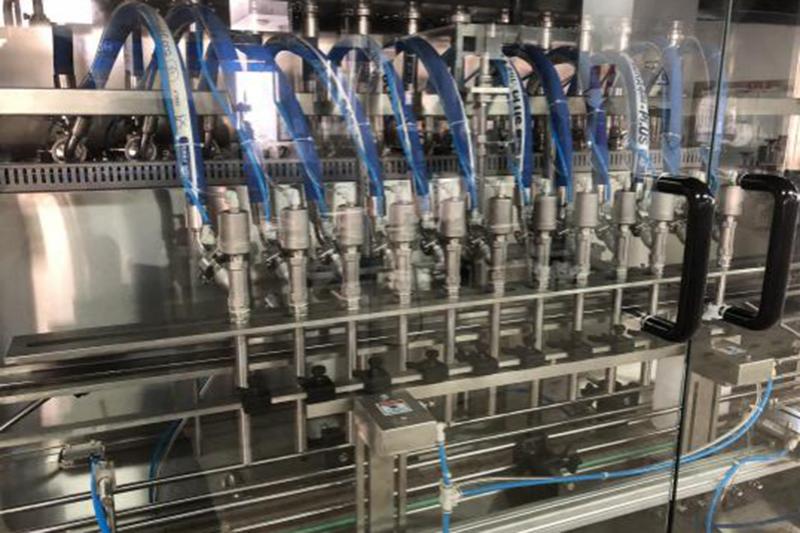

Nozzles

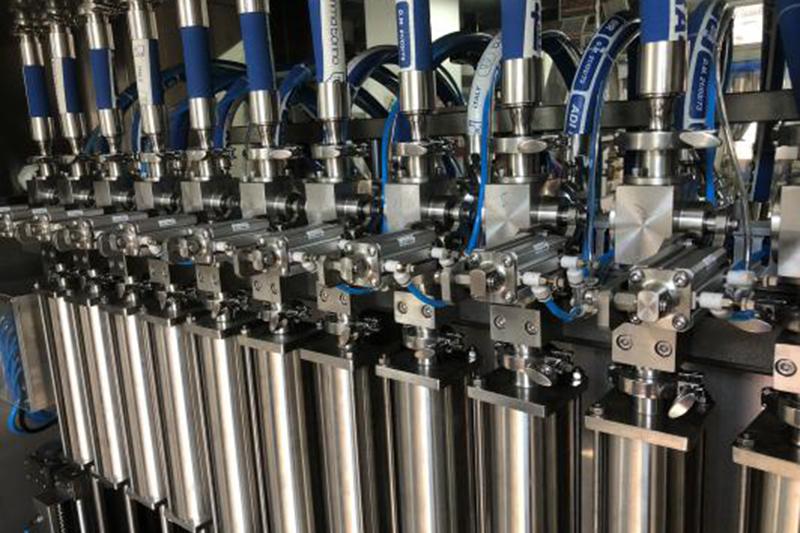

Rotary valve

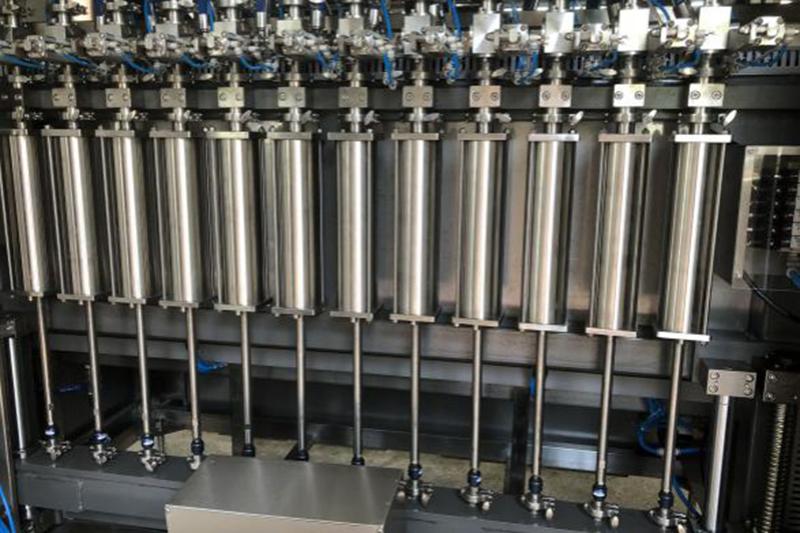

Piston material cylinder
Final products:
Parameter:
Dimension (length*width*height) :2000mm*1100mm*2200mm
Number of nozzles: 12pcs/16pcs/20pcs
Bottle size: diameter φ40mm-φ100mm; height 80mm-300mm
Minimum bottleneck diameter: φ18mm
Packing specification: 50ml-1000ml
Filling speed: 6000 pcs/min (Use water as the medium)
Filling accuracy: 50ml-100ml, maximum error±1ml;100ml~500ml, error: ±0.5%;500ml~1000ml, error: ±0.3%
Power supply: 220V 50HZ or 110V 60HZ
Main power: 1.5kw
Air pressure: 0.55Mpa~0.65Mpa clean and stable air source
