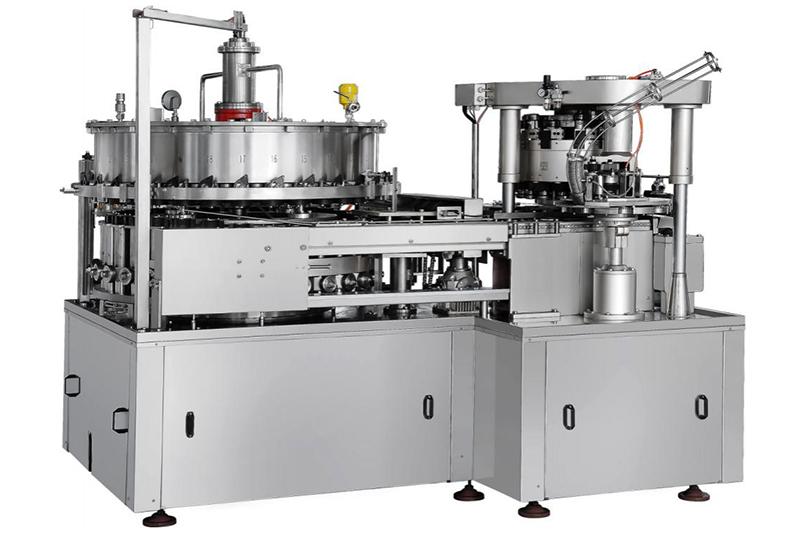

Can Filler Machine, Beer Packaging

Application:
The can filler machine uses a single chamber isobaric valve for filling, so that no bubbles are produced during the filling process. This can filling machine is widely used in filling and capping of beer and other carbonated drinks.

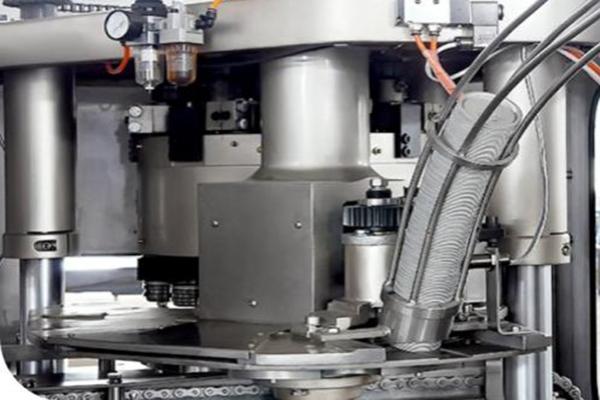

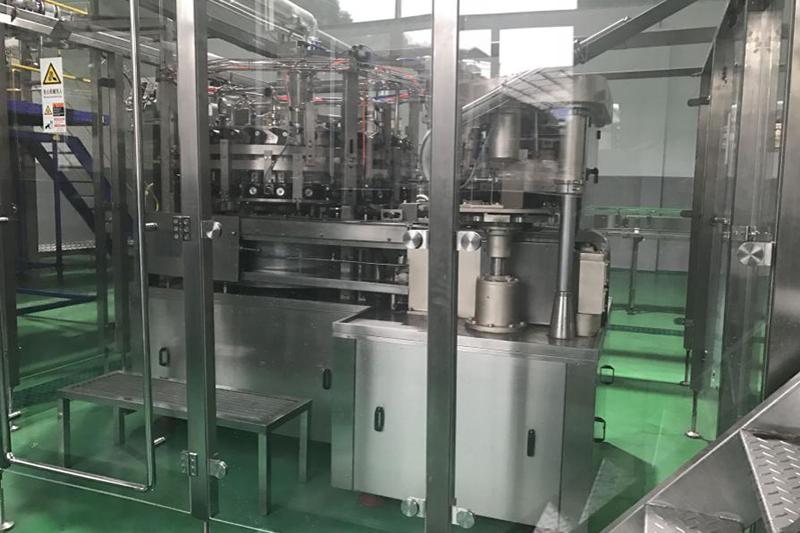

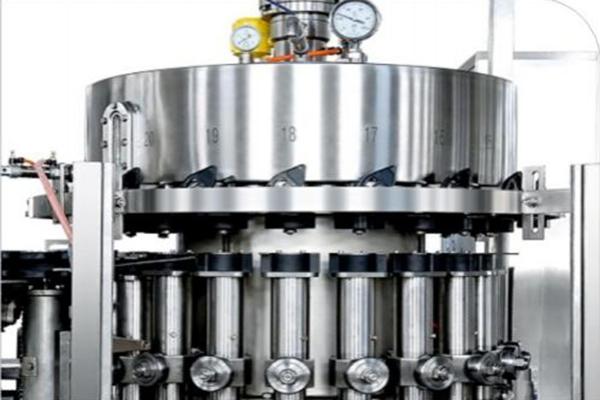

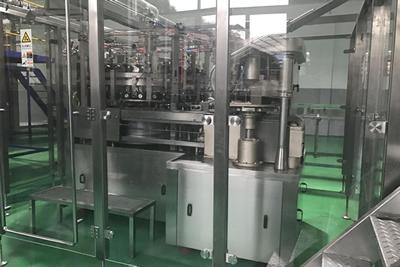

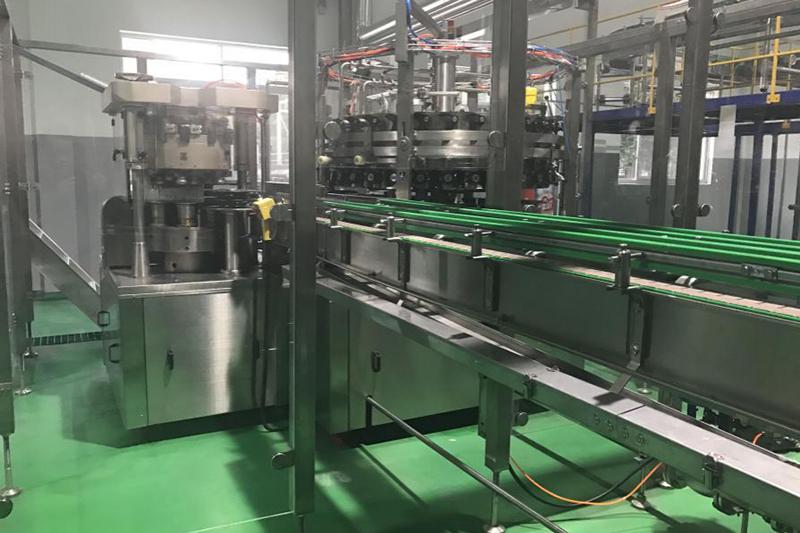

Details:
Final products:

Parameter:
1. Production capacity: 150CPM
2. Can diameter: Φ53-66mm
3. Can height: 70-175mm
4. Numbers of filling nozzles: 20
5. Numbers of seaming station: 4个
6. Filling pressure: 0.3~0.5MPa
7. Compressed air consumption: 1Nm3/h
8. Rejection rate: ≤3‰ (exclude empty can)
9. Air pressure: 0.6-1MPa
10. Total power: 5.5Kw
11. Conveyor belt height: 1200mm
12. Dimension: 2300*1700*2000mm
13. Total weight: ≈4000kg

Features:
  • This can filling machine is made of carbon steel, and the filling valve and material cylinder are both made of stainless steel. The filling hopper is also made of a high strength material that is corrosion resistant and easy to clean.
  • When seaming, the machine uses a double-seam method controlled using frequency control.
  • The can filler can control the filling hopper level, which can also be automatically cleaned and disinfected. The filling speed is continuously adjustable.
