Bottle Sorting Filling Line for Liquid Packaging

Application:

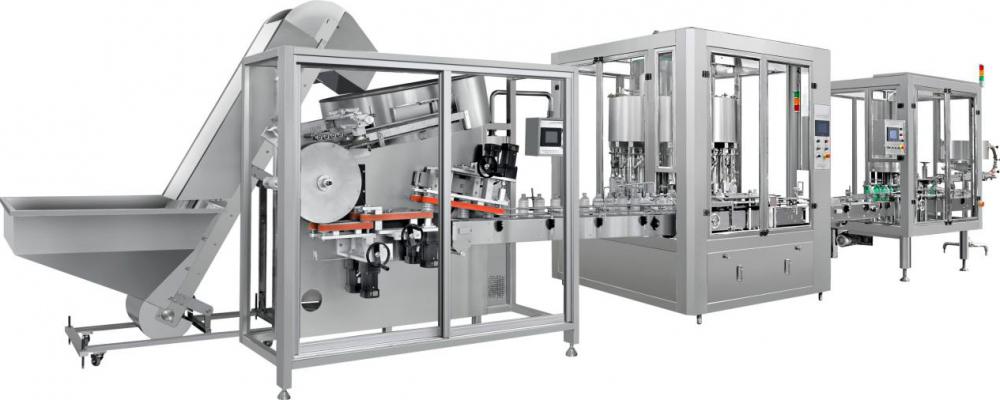

The bottle sorting filling line for liquid packaging consists of a bottle unscambler, servo volumetric filling machine, rotary capper and other machines. This machine is able to finish primary filling packaging and secondary carton packing. In addition, it is suitable to fill liquids automatically when the filling volume is below 1000ml.

Parameter:
Filling volume: 100-1000ml(via changing screw rods)
Number of nozzle: 24 Sets
Filling speed: 5000 bottles/hour
Filling accuracy: 1%
Hopper Volume: 100L
Air pressure: 5-6Kg/cm 0.2m3/min
Power supply: 3P 080V/220V 50-60Hz 2500W

• The whole filling line is highly intelligent with only three staffs to operate (one to operate and two to assist).
• The bottle unscrambler features quick and automatical operation, and it is suitable for both square and round bottles.
• It is easy to adjust the parameters because there is no specific mold.
• When there is no bottle, the machine will alarm immediately.
• The machine uses a servo system to measure the filling level to control filling accuracy.
• These nozzles can adjust height to prevent bubbles when changing different bottles.
• Rotary Capper is suitable for all kinds of caps.
• The automatic detection and removal system can ensure production rate, and capping rate is nearly 100%.
• This labeling machine combines paper label labeling machine and adhesive labeling machine together to meet the standard of customers to change different labels so as to save time and space.
