Filling and Capping Line with Bottle Unscrambler

Application:

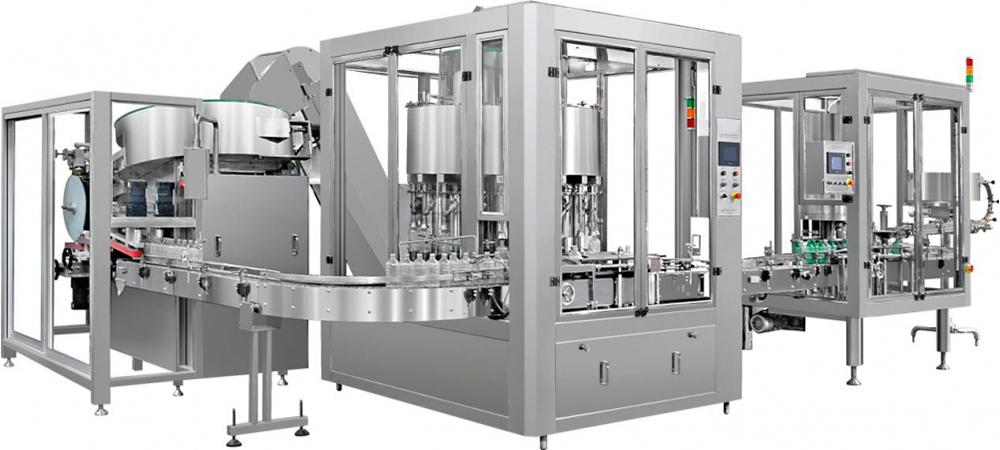

The filling and capping line consists of a bottle unscrambler, servo volumetric filling machine, inline capping machine and another automatic rejection system. The machine is widely used to filling small size bottles under the volume of 5000ml.

Parameter:
Filling volume: 500-5000ml(via changing screw rods)
Number of filling nozzle: 12 Sets
Filling speed: 30-80 bottles/min
Filling accuracy: 1%
Hopper Volume: 100L
Compressed air: 5-6Kg/cm 0.2m3/min
Power supply: 3P 080V/220V 50-60Hz 2500W

• The whole filling line is highly intelligent, and requires only 3 people to operate.

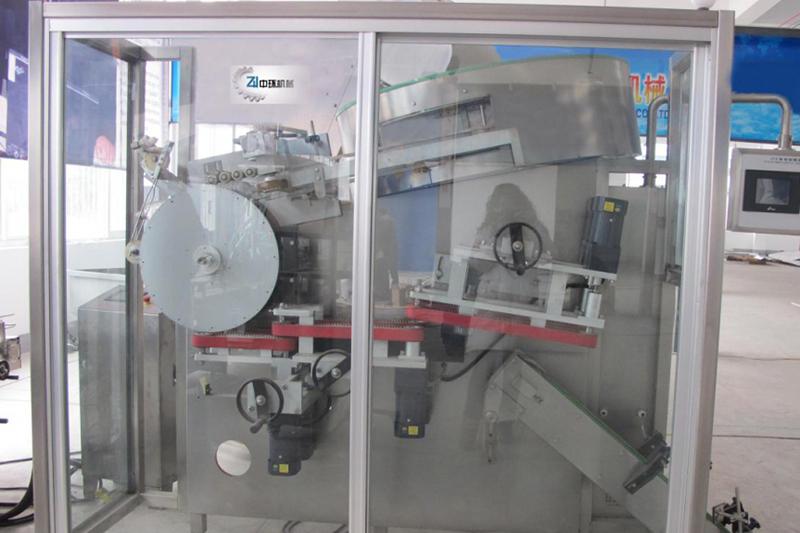

• The bottle unscrambler can sort bottles quickly and automatically, and it is suitable for both square and round bottles. It is easy to adjust parameters because there are no specific molds.

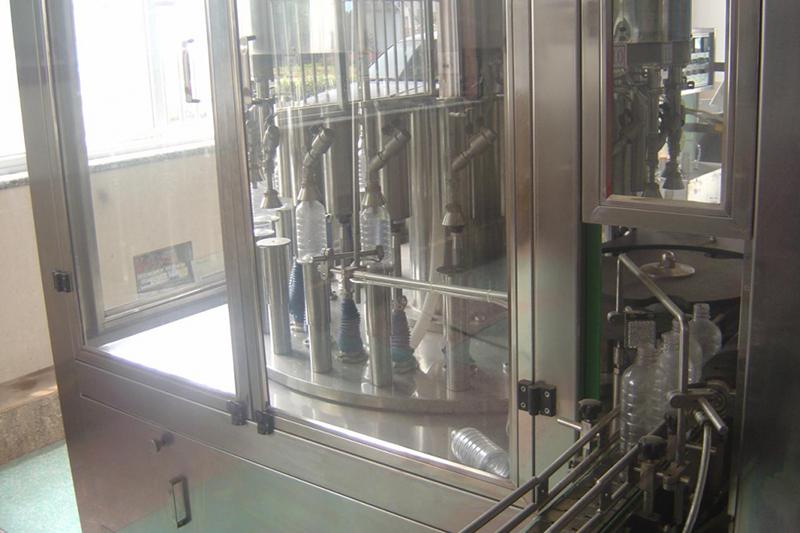

• The filling machine uses a servo system to measure the filling level and ensure the filling accuracy.

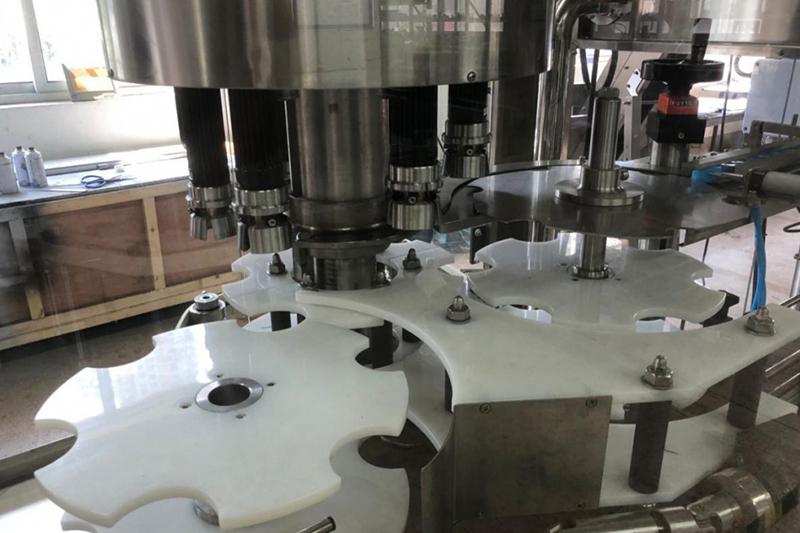

• The machine use a linear capping system that is easy and fast to adjust.
